| Place of Origin: | China |
|---|---|
| Brand Name: | filamentlux |
| Certification: | CE & ISO9001 |
| Model Number: | ts-ws2811 |
| Minimum Order Quantity: | 3000PCS |
| Price: | Negotiable |
| Packaging Details: | Color box or Blister |
| Delivery Time: | 20-25days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 500kpcs per month Contact Now |
| Light Source: | Epistar F8mm Dip LED | Beam Angle: | 140 Deg. |
|---|---|---|---|
| Operate Voltage: | DC5V | Consumption Watt/M: | 0.3W |
| IC Type: | Ws2811 | Pixel Resolution（Dot/㎡）: | 1024 |
| LED QTY/chain: | 50pcs | Wire Length(Pitch): | 8cm |
| Operation Temperature: | -30°C——40°C | Storage Temperature: | -30°C——50°C |
| High Light: | WS2811 Addressable LED Strip,rgb led strip ws2811,DC5V Addressable LED Strip |
||

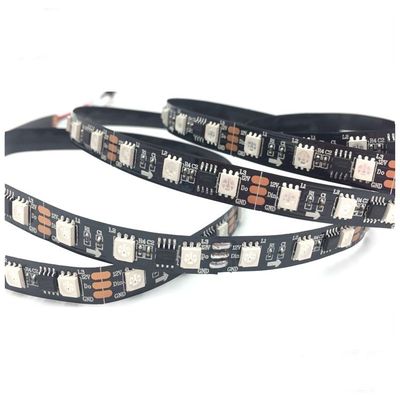

Addressable WS2811 LED pixel
Applications:
The excellent light and user-friendly designs make LED Pixels perfect for numerous applications, Such as Outdoor digital sign letters, digital panel ,Dance Floor ,Christmas Tree lighting etc.
Features and Benefits:
- Control IC included, supporting numerousColor-change effects;
- Pcontrol by SD controller,Arduino,DMX512,Artnet
- Software : LEDedit, Madrix,etc DC 5V low voltage input;
- Every 1 Leds linear separable, custom-lengthavailable;
- Eco-green light, no UV, IR;
- Extremely long lifespan &lower power consumption;
| Light source | Epistar F8mm Dip LED |
| Beam angle | 140 deg. |
| Operating voltage | DC5V |
| Consumption watts per 25 LEDs/M | 0.3W |
| IC Type | Ws2811 |
| Pixel resolution(Dot/㎡) | 1024 |
| LED QTY/chain | 50pcs |
| Wire length(Pitch) | 8cm |
| Operation Temperature | -30°C——40°C |
| Storage Temperature | -30°C——50°C |
Outline Dimension:Unit(mm)
| Part Number | Emitting Color | LED Quantity | Voltage (V) | Power (W/1pcs) | Current (A/1pcs) | Lumen per 1chain/50LED | Waterproof IP:66 |
| ts-ws2811 | RGB | 50/1chain | 5 | 0.3W | 0.06A | R29/G81/B27 lm | PVC |
