| Place of Origin: | China |
|---|---|
| Brand Name: | filamentlux |
| Certification: | CE & ISO9001 |
| Model Number: | TS-10060-WS2811 |
| Minimum Order Quantity: | 3000PCS |
| Price: | Negotiable |
| Packaging Details: | Color box or Blister |
| Delivery Time: | 20-25days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 500kpcs per month Contact Now |
| Light Source: | SMD5050 RGB | Beam Angle: | 120 Deg. |
|---|---|---|---|
| Operate Voltage: | DC5V | Consumption Watt/M: | 9(max)W |
| IC Type: | Ws2812 | Pixel Pitch（mm）: | P33.3mm |
| Pixel Resolution（Dot/㎡）: | 20736 | Entire Piece LED Quantity: | 0.25mm |
| High Light: | 5050 Addressable LED Strip,IP67 Addressable LED Strip,IP67 ws2811 5050 |
||

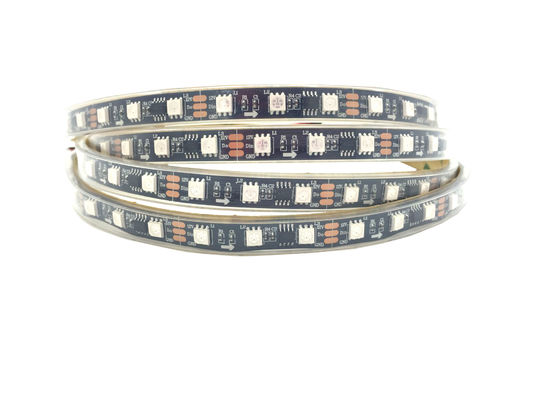

User Friendly WS2811 IP67 60pcs 5050 Addressable LED Strip
Applications:
The excellent light and user-friendly designs make LED strips perfect for numerous applications, i.e cove lights, backlights, cabinet lights, edge lights, architectural lights for the corridor, canopy, archway, lights for path and contour marking; etc.
They can be a good choice for lights for hotels, restaurants, night clubs, coffee/wine bars, shopping malls, various shops, cinemas, beauty centers, office fronts, even lights for household kitchens or living rooms, etc.
Features and Benefits :
| Light source | SMD5050 RGB |
| Beam angle | 120 deg. |
| Operating voltage | DC5V |
| Consumption watts per 60 LEDs/M | 14.4 (max)W |
| Pixel pitch(mm) | P16mm |
| Pixel resolution(Dot/㎡) | 20736 |
| Entire piece LED quantity | 60pcs |
| Printed circuit board thickness | 0.25mm |
| Operation Temperature | -40℃-40℃ |
| Storage Temperature | -10℃-50℃ |
| Part Number | Emitting color | LED Quantity | Voltage (V) | IC | Current (A/1m) | Lumen per 1m/144LED |
| TS-10060-WS2811 | RGB | 60/M | 5 | WS 2811 | 6.8A | R288/G720/B216 lm Non-waterproof |
| TS-10060-WS2811 | RGB | 60/M | 5 | WS 2811 | 6.8A | R288/G720/B216 lm Silicon Tube |
