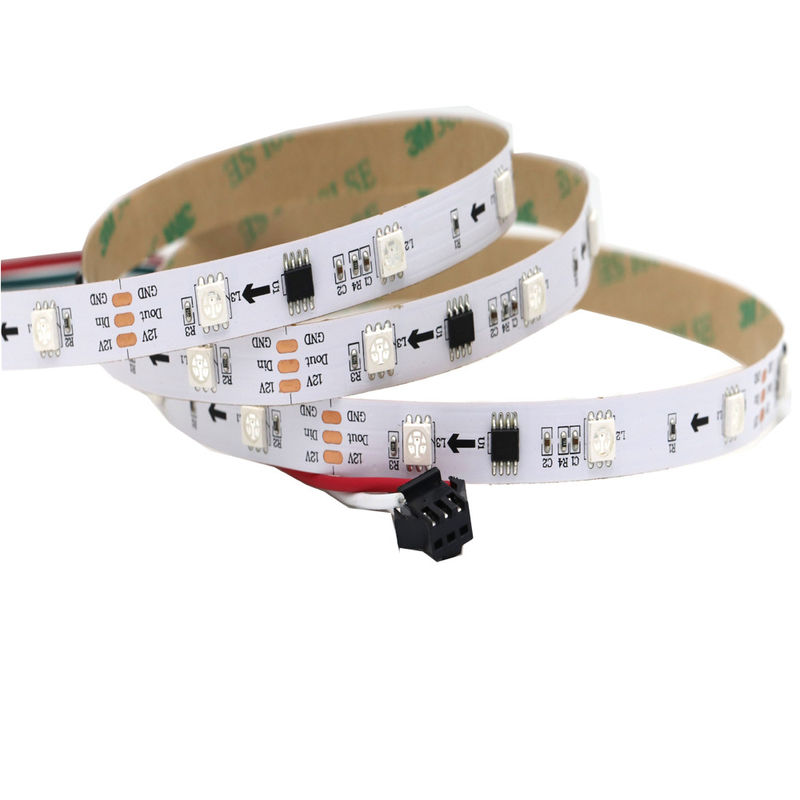

Silicone Coating IP65 14.4W P16.6mm Addressable 2811 Pixel Strips

Basic Information
Place of Origin: China
Brand Name: filamentlux
Certification: CE & ISO9001
Model Number: TS-WS2811-60
Minimum Order Quantity: 3000PCS
Price: Negotiable
Packaging Details: Color box or Blister
Delivery Time: 20-25days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500kpcs per month Contact Now
Detail Information
Light Source: SMD5050 RGB Beam Angle: 120 Deg.
Operate Voltage: DC12V/24V Consumption Watt/M: 14.4(max)W
IC Type: Ws2811 Pixel Pitch(mm): P16.6mm
Pixel Resolution(Dot/㎡): 3600 Entire Piece LED Quantity: 0.25mm
High Light:

Addressable 2811 pixel strips


14.4W 2811 pixel strips


Addressable ws2811 5050

Product Description

Silicone Coating IP65 14.4W P16.6mm Addressable 2811 Pixel Strips


An LED module is a nifty gadget designed to be self-contained to function independently or to be added to a complimentary unit. It is made of parts constructed to produce light from a light emitting diode (LED). Such parts are the LED laden circuit boards, heat, electrical and mechanical interfaces, LED drive and control electronics. LEDs modules are favored for their environment-friendly fixtures. A well-designed LED unit consumes less power while emitting the same amount of light as conventional units.



Features and Benefits :

  • Control IC included supporting numerous color-change effects;
  • Pcontrol by SD controller,DMX512,Artnet
  • Flexible PCB 12V low voltage input;
  • PCB Color: White & Black available for choose
  • Absolutely addressable, each IC control 3 RGB LEDs
  • Standard Reel Length: 5meter/roll, also can be customized.
Light source SMD5050 RGB
Beam angle 120 deg.
Operating voltage DC12V/24V
Consumption watts per 60 LEDs/M 14.4(max)W
Pixel pitch(mm) P16.6mm
Pixel resolution(Dot/㎡) 3600
Entire piece LED quantity 60pcs
Printed circuit board thickness 0.25mm
Operation Temperature -40℃-40℃
Storage Temperature -10℃-50℃
IP rate Ip20/IP65 (Silicon glue) ip67( Silicon tube )/IP68



Part Number Emitting color LED Quantity Voltage (V) IC Current (A/1m) Lumen per 1m/60LED
TS-WS2811-30 RGB 30/M 12月24日 WS 2811 6.8A R288/G720/B216 lm Non-waterproof
TS-WS2811-60 RGB 60/M 12月24日 WS 2811 6.8A R288/G720/B216 lm Silicon Tube
