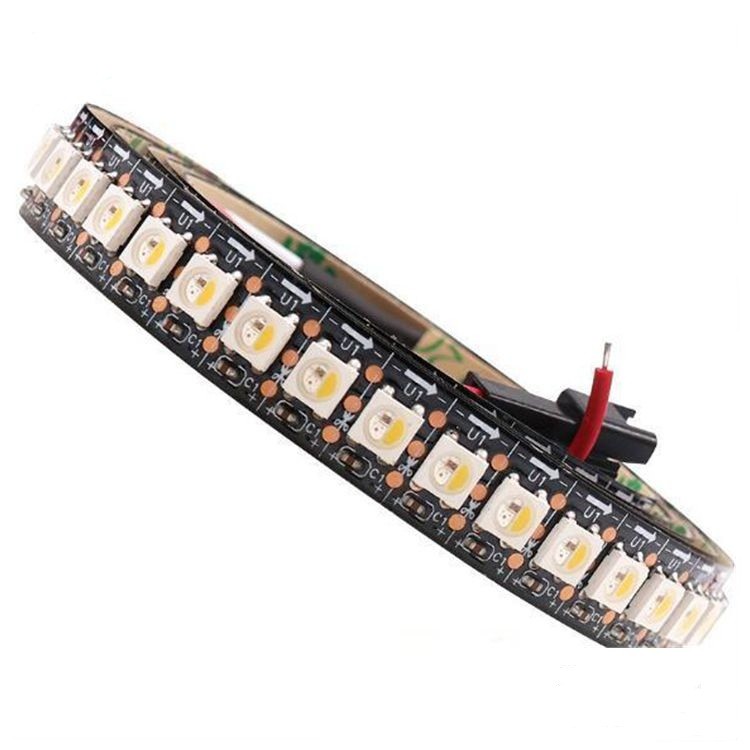

High Brightness Side View IP20 DC5V Neon SK6812 Led Strip

Basic Information
Place of Origin: China
Brand Name: filamentlux
Certification: CE & ISO9001
Model Number: TS-100144-SK6812RGBW
Minimum Order Quantity: 3000PCS
Price: Negotiable
Packaging Details: Color box or Blister
Delivery Time: 20-25days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500kpcs per month Contact Now
Detail Information
Light Source: SMD5050 RGBW Beam Angle: 120 Degree
Operate Voltage: DC5V Consumption Watt/M: 19.2(max)W
Pixel Pitch(mm): P16.6mm Pixel Resolution(Dot/㎡): 3600
Entire Piece LED Quantity: 60 Pcs Printed Circuit Board Thickness: 0.25mm
Operation Temperature: -40℃-40℃ Storage Temperature: -10℃-50℃
High Light:

Neon sk6812 led strip

,

DC5V sk6812 led strip

,

IP20 sk6812 rgb led


Product Description

High Brightness Side View IP20 DC5V Neon SK6812 Led Strip



Applications:

The excellent light and user-friendly designs make LED strip perfect for numerous applications, i.e cove lights, back lights, cabinet lights, edge light, architectural lights for corridor, canopy, archway, lights for path and contour marking; etc.



They can be a good choice for lights for hotels, restaurants, night clubs, coffee / wine bars, shopping malls, various shops, cinemas, beauty centers, office fronts, even lights for household kitchens or living rooms, etc.



Technical Parameters:

Light source SMD5050 RGBW
Beam angle 120 deg.
Operating voltage DC5V
Consumption watts per 60 LEDs/M 19.2(max)W
Pixel pitch(mm) P16.6mm
Pixel resolution(Dot/㎡) 3600
Entire piece LED quantity 60 pcs
Printed circuit board thickness 0.25mm
Operation Temperature -40℃-40℃
Storage Temperature -10℃-50℃



Features and Benefits :

  • Control IC included, supporting numerous Color-change effects;
  • control by SD controller,DMX512,Artnet
  • Flexible PCB 5V low voltage input;
  • PCB Color: White & Black available for choose
  • Absolutely addressable ,each IC built inside RGB LED
  • 5 Meter per PCS,Customer’s size available also
Part Number Emitting color LED Quantity Voltage (V) IC Current (A/1m) Lumen per 1m/60LED
TS-10060-SK6812RGBW RGBW 60/M 5 Sk6812 6.8A R288/G720/B216 lm Non-waterproof
TS-100144-SK6812RGBW RGBW 144/M 5 SK6812 6.8A R288/G720/B216 lm Silicon Tube





High Brightness Side View IP20 DC5V Neon SK6812 Led Strip 0

High Brightness Side View IP20 DC5V Neon SK6812 Led Strip 1
