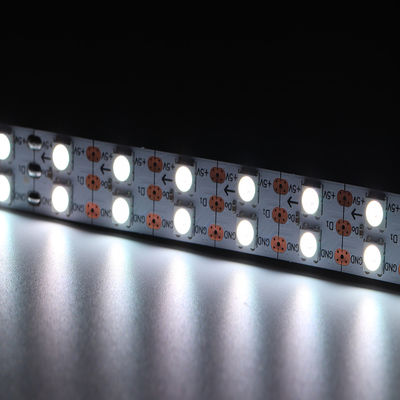

Programmable 120 Degree 19.2W 12V P16.6mm SK6812 Led Strip

Basic Information
Place of Origin: China
Brand Name: filamentlux
Certification: CE & ISO9001
Model Number: TS-10060-SK6812pRGBW
Minimum Order Quantity: 3000PCS
Price: Negotiable
Packaging Details: Color box or Blister
Delivery Time: 20-25days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500kpcs per month Contact Now
Detail Information
Light Source: SMD5050 RGBW Beam Angle: 120 Degree
Operate Voltage: DC12V Consumption Watt/M: 19.2(max)W
Pixel Pitch(mm): P16.6mm Pixel Resolution(Dot/㎡): 3600
Entire Piece LED Quantity: 60 Pcs Printed Circuit Board Thickness: 0.25mm
Operation Temperature: -40℃-40℃ Storage Temperature: -10℃-50℃
High Light:

Programmable SK6812 led strip

,

P16.6mm SK6812 led strip

,

Programmable Addressable LED Strip


Product Description

Programmable 120 Degree 19.2W 12V P16.6mm SK6812 Led Strip



These flexible RGB LED strips based on the SK6812 LED/driver IC are an easy way to add complex lighting effects to a project. Each LED has an integrated driver that allows you to control the color and brightness of each LED independently. The SK6812’s color and brightness are largely independent of its supply voltage from 3.5 V to 5 V, meaning that voltage drops caused by the resistance in long power connections are less likely to have a visible effect.



Applications:

The excellent light and user-friendly designs make LED strip perfect for numerous applications, i.e cove lights, back lights, cabinet lights, edge light, architectural lights for corridor, canopy, archway, lights for path and contour marking; etc.



They can be a good choice for lights for hotels, restaurants, night clubs, coffee / wine bars, shopping malls, various shops, cinemas, beauty centers, office fronts, even lights for household kitchens or living rooms, etc.



Technical Parameters:

Light source SMD5050 RGBW
Beam angle 120 deg.
Operating voltage DC12V
Consumption watts per 60 LEDs/M 19.2(max)W
Pixel pitch(mm) P16.6mm
Pixel resolution(Dot/㎡) 3600
Entire piece LED quantity 60 pcs
Printed circuit board thickness 0.25mm
Operation Temperature -40℃-40℃
Storage Temperature -10℃-50℃



Features and Benefits :

  • Control IC included, supporting numerous Color-change effects;
  • control by SD controller,DMX512,Artnet
  • Flexible PCB 5V low voltage input;
  • PCB Color: White & Black available for choose
  • Absolutely addressable ,each IC built inside RGB LED
  • 5 Meter per PCS,Customer’s size available also
Part Number Emitting color LED Quantity Voltage (V) IC Current (A/1m) Lumen per 1m/60LED
TS-10060-SK6812pRGBW RGBW 60/M

24

Sk6812P 0.8A R288/G720/B216 lm Non-waterproof

Programmable  120 Degree 19.2W 12V P16.6mm SK6812 Led Strip 0Programmable  120 Degree 19.2W 12V P16.6mm SK6812 Led Strip 1Programmable  120 Degree 19.2W 12V P16.6mm SK6812 Led Strip 2Programmable  120 Degree 19.2W 12V P16.6mm SK6812 Led Strip 3
