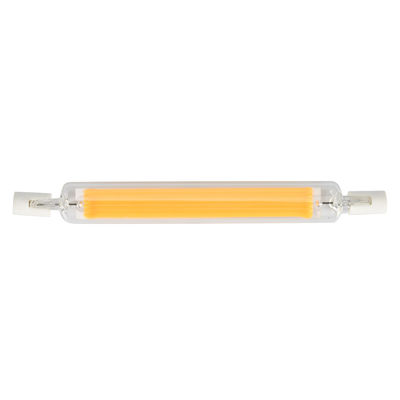

FULL GLASS R7S 118 7.6W LED BULB with AC220-240V Input and Transparent Glass Material

Basic Information
Place of Origin: China
Brand Name: filamentlux
Certification: CE,ROHS,
Model Number: FML-001
Minimum Order Quantity: 3000PCS
Price: USD0.-USD0.
Packaging Details: Color box or Blister
Delivery Time: 20-25days
Payment Terms: T/T or L/C
Supply Ability: 500kpcs per month
Detail Information
Length: 118*φ16.3 Material: FULL GLASS
Glass Type: Transparent Socket Type: R7S
Voltage(VAC): AC230V Input Current(A): Typ:0.033
Rated Power(W): 7.6W±10% Substrate: Sapphire Substrate
Chip: Sanan Beam Angle: 320º
Ingress Protection: IP44
High Light:

Transparent Glass LED R7S Bulb

,

7.6W LED R7S Bulb

,

FULL GLASS LED R7S Bulb


Product Description

FULL GLASS R7S 7.6W LED BULB 112lm/W 3000K FML-001



Energy Efficiency & High Brightness
350 Luminous flux bulbs cost far less power than halogen bulbs, save your electricity bills, perfect for indoor lighting.

Easy Installation
Standard G9 base, easy to install or remove.

Instant On
The light up time is less than 1 sec.

Extremely Long Life
Average life of these bulbs is 25000 hours, once you installed them, you hardly need to replace them.

Protective PC Shell
Secure your safety and protect LEDs from damage.



R7S 7.6W LED BULB Quick Detail:

  • FULL GLASS
  • AC220-240V input options
  • Transparent
  • Sapphire Substrate
  • Sanan chip
  • Mix gas coolingt
  • 320º beam
  • Up to 70% energy savings
  • IP44 Ingress protection
  • CE, RoHS, TUV, UL compliant
  • 2 Year Warranty

R7S 7.6W LED BULB Features:

  • Full glass appearance which is same as a halogen bulb
  • COB technology and get luminous flux up to 130lm/w+
  • Mix with Semiconductor technology and LED technology and improve production efficiency.
  • By using halogen sealing technology can be achieve huge capability easily
  • Best retrofit choice for hologen bulb
    R7S 7.6W LED BULB Technical parameter:

Basic information

P/N

Length

Material

Glass Type

Socket Type

FML-001-3000K 118*φ16.3 Glass transparent R7S



Electrical parameter (Temperature=25℃)

Voltage(VAC) Input current(A) Rated Power(W)
AC230V Typ:0.033 7.6W±10%



Optical parameter (Temperature=25℃)

Item parameter Unit
Input Voltage AC230V V
power factor PF≥0.75 -
LED Type Molding filament -
Luminous Flux CCT Min: Typ: Max: lm
2700 765 850
3000 765 850
4000 765 850
6300 765 850
Efficiency Typ:   Lm/w
Color Temperature 2700 3000 4000 6300 K
2650-2850 2850-3250 3850-4250 6000-6600
RA RA≥80 -
Light Angle 360 -
IPX IP44 -



Competitive Advantage:

  1. Outstanding appearance compare with other type of R7S, such as silicon,plastic, ceramic and so on
  2. Less labor cost than conventional R7S
  3. Higher lumen output and most reasonable retrofit for halogen bulb



Cautions

  • In order to ensure the product work properly, please use the power supply within indicating voltage range.
  • This product does not support dimming
  • Please follow the correct installation steps to install the product.
  • In order to ensure the effectiveness and safety, please do not in the high humidity or dustenvironment and bathroom, sauna room, this product use outdoor rain place
