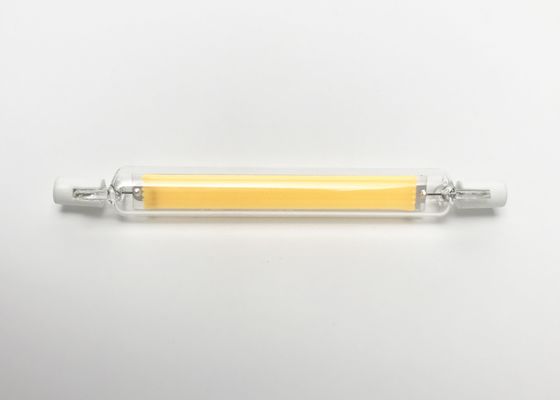

1800K 15W 118mm horizontal plug retrofit LED R7S Bulb

Basic Information
Place of Origin: FML-001
Brand Name: China
Certification: CE,ROHS,
Model Number: filamentlux
Minimum Order Quantity: 3000PCS
Price: USD2.15-USD3.20
Packaging Details: Color box or Blister
Delivery Time: 20-25days
Payment Terms: T/T or L/C
Supply Ability: 100kpcs per month
Detail Information
Length: 118*φ13.3 Material: Glass
Glass Type: Transparent Socket Type: R7S
Voltage(VAC): AC230V Input Current(A): Typ 0.045
Rated Power(W): 8W±10% LED Type: Molding
High Light:

15W led r7s lamp

,

118mm LED R7S bulb

,

15w led retrofit r7s


Product Description

FULL GLASS R7S 8W LED BULB 135lm/w 2700K





Fitting Type R7s
Power Consumption 8W
Voltage 220-240 V AC
Lifetime 15,000 hours
Colour Temperature 2700K Warm White
Colour Codes 827
Colour Rendering 80+ CRI
Light Output 1055 lumens
Dimmable No
Dimensions 78mm (long) x 29mm (diameter)
Weight 75 grams
Installation Self install or consult an electrician.
  1. Reduces energy consumption by over 80%
  2. Designed to operate for 15,000 hours
  3. Fits double ended R7s base fittings
  4. Warm white 2700K colour temperature



R7S 8W LED BULB Quick Detail:

  • FULL GLASS
  • AC220-240V input options
  • Transparent
  • Sapphire Substrate
  • Sanan chip
  • Mix gas coolingt
  • 320º beam
  • Up to 70% energy savings
  • 20w power consumption
  • IP44 Ingress protection
  • CE, RoHS, TUV, UL compliant
  • 2 Year Warranty



R7S 8W LED BULB Description:

  • Full glass appearance which is same as a halogen bulb
  • COB technology and get luminous flux up to 130lm/w+
  • Mix with Semiconductor technology and LED technology and improve production efficiency.
  • By using halogen sealing technology can achieve huge capability easily
  • The best retrofit choice for halogen bulb R7S

R7S 8W LED BULB Technical parameter:

R7S 8W LED BULB Basic information

P/N

Length

Material

Glass Type

Socket Type

FML-R7S-004-2700K 118*φ13.3 Glass transparent R7S



R7S 8W LED BULB Electrical parameter (Temperature=25℃)

Voltage(VAC)

Input current(A)

Rated Power(W)

AC230V Typ:0.045 8W±10%



R7S 8W LED BULB Optical parameter (Temperature=25℃)

Item parameter Unit
Input Voltage AC230V V
power factor PF≥0.75 -
LED Type Molding -
Luminous Flux Min: 920 Typ: 1055 Max: 1100 lm
Efficiency Typ: 135 Lm/w
Color Temperature 2650-2850K K
RA RA≥80 -
Light Angle 320 -
IPX IP44 -



Cautions

1. In order to ensure the product work properly, please use the power supply within indicating voltage range.

2. This product does not support dimming

3. Please follow the correct installation steps to install the product.

4. In order to ensure the effectiveness and safety, please do not in the high humidity or dust environment and bathroom, sauna room, this product use outdoor rain place





Competitive Advantage:

  • Outstanding appearance compare with other type of G9, such as silicon,plastic, ceramic and so on
  • Less labor cost than conventional G9
  • Higher lumen output and most reasonable retrofit for halogen bulb
