| Place of Origin: | China |
|---|---|
| Brand Name: | filamentlux |
| Certification: | CE,ROHS, |
| Model Number: | FML-001 |
| Minimum Order Quantity: | 3000PCS |
| Price: | USD0.32-USD0.52 |
| Packaging Details: | Color box or Blister |
| Delivery Time: | 20-25days |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 500kpcs per month |
| Application: | Decorative Lighting | Lamp Luminous Flux(lm): | 500LM/M |
|---|---|---|---|
| Lamp Body Material: | PVC,PCB,Copper Wire | Emitting Color: | Warm Light /White Light/Blue/Red/Yellow/RGB/Changeable/Green/Others |
| LED Light Source: | SMD2835 LED Chip | Product Name:: | Led Light Strips |
| LED Quantity: | 120leds/m | IP Rating: | IP65 |
| CRI: | ≥80,90 | PCB Width: | 12mm |
| High Light: | flat 120v flexible led light strips,120v driverless led strip lights,SMD2835 120v led strip dimmable |
||

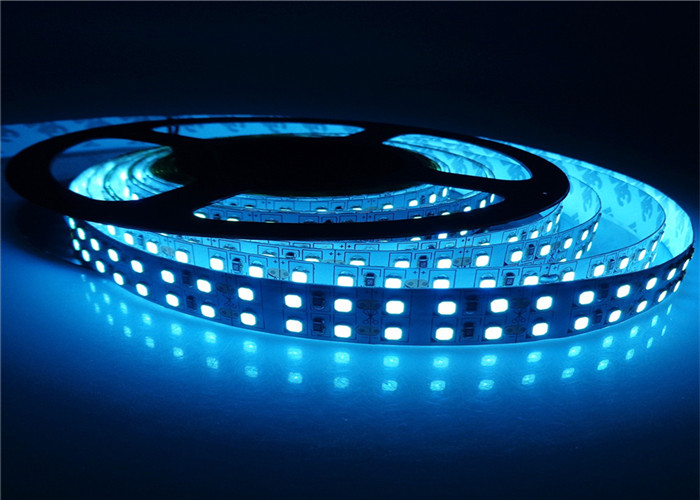

SMD2835 Flat Flexible 120V Driverless LED Strip Lights
Considered the most advanced LED strip type, SMD2835 LED strips has the same size as the 3528 chip. In a nutshell, this chip is a re-engineered 3528 LED with an increased light-emitting surface area and better heatsinks which allows 2 to 3 times more light output than the 3528 chip. Designed for better heat dispersion, superior reliability and longer life, the 2835 strip is recommended to work with aluminium extrusions for task lighting, backlighting, garage lighting, under cabinet lighting, bar lighting and general linear lighting in offices or domestic applications. We also offer splashproof IP65 and waterproof IP68 options. Contact us now!
High quality, low power consumption, energy efficiency. High flexibility, waterproof, and all sorts of stylish design. OEM/ODM services are available. More than 50,000 hours long lifespan with 1-3 years warranty. Wide range of emitting colors and applications. Can be cut as your actual demand and reduce waste. 3M adhesive tape on backside, easy to install. Certifications: RoHS and CE approved, etc.
120V AC LED STRIP LIGHT Parameters:
| ITEM NO. | FML-HV-5730-120SH |
| INPUT VOLTAGE | 120V |
| Lamp Power | 14.4W/M 7-9w/m 10W/M |
| LED QTY | 30led/m 60LED/m 120led/m |
| IP Rank | IP20/IP50/IP65/IP66/IP67/IP68 |
| FREQUENCY | 50Hz |
| LED type | SMD2835 SMD5050 |
| RATED POWER | 7.5W±10%/m |
| PF | >0.9 |
| Luminous Flux | ≥500LM 500LM/M 412LM/m 522lm/m |
| LPW | ≥70lm/W |
| CCT | 2800-3200k, 4000-4500K, 6000-6500K, 2700k 3000k, 4000k, 6500k |
| Ra | ≥70 |
| SDCM | ＜7 SDCM |
| Working condition | -10℃～40℃；10%～90% |
| Insulate class | II |
| Install method | Clip |
| Driver connection | Plug in-off |
| Dimmer | / |
| Cover/color | / |
| NET weight(100m) | 11kg |
| Product size | L100000mm×W14.5mm×H7mm |
| Inner box | / |
| Master carton | 330mm × 330mm ×210mm |
| Packing | 100m/CTN |
| Lifetime | 25000h |
| Warranty | 1 year |
120V AC LED STRIP LIGHT Quick Details:
1) Pay attention +/- when SMT
2) LED SMT need to be tidy and without weak soldering
3) Smooth soldering point and clean LED
4) No any scar in the PCB
5) Can not see any color and brightness difference when by naked eye
