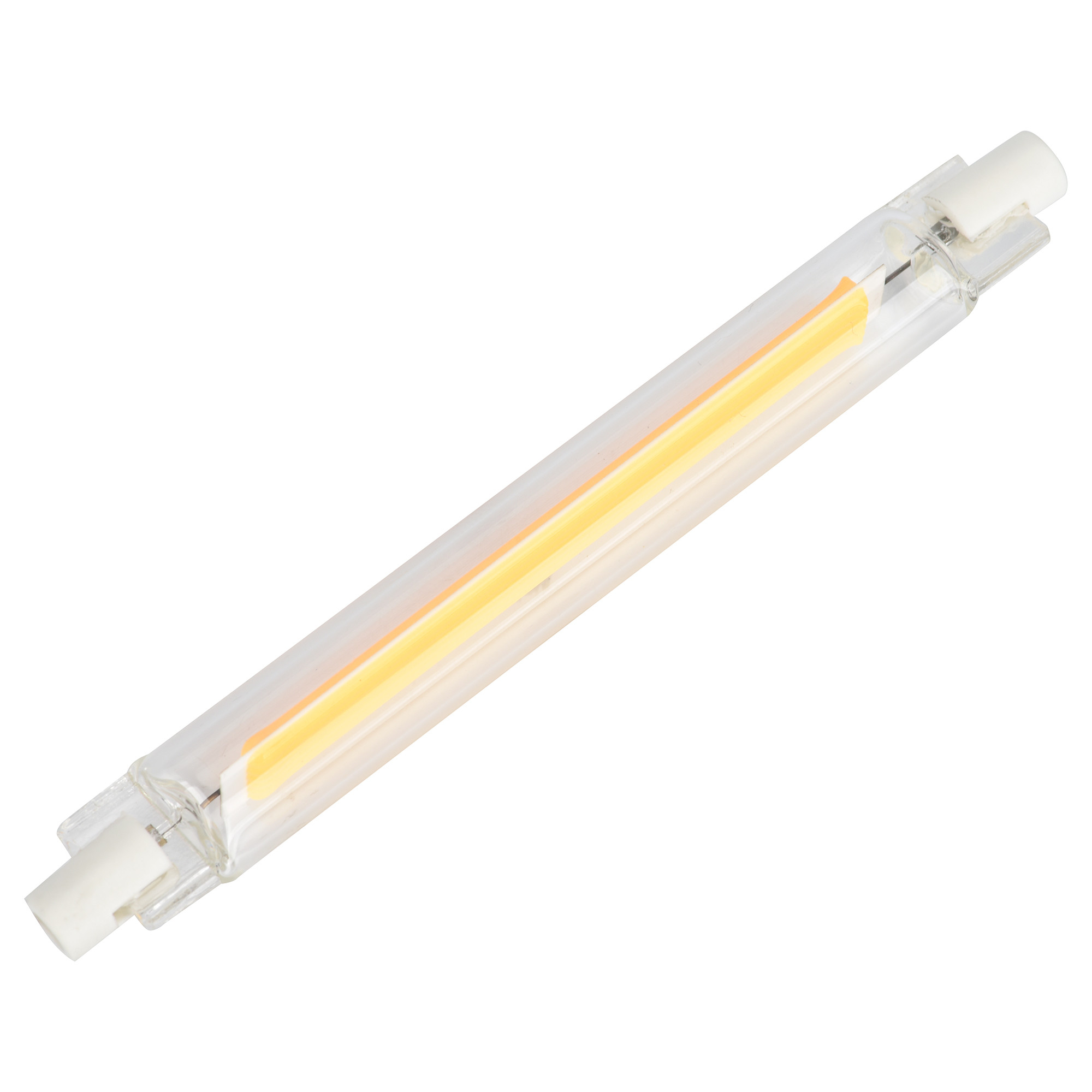

Garden Lighting 118MM 7W 135lm/W 2700K Linear R7s Led

Basic Information
Place of Origin: FML-001
Brand Name: China
Certification: CE,ROHS,
Model Number: filamentlux
Minimum Order Quantity: 3000PCS
Price: USD01.6-USD1.9
Packaging Details: Color box or Blister
Delivery Time: 20-25days
Payment Terms: T/T or L/C
Supply Ability: 500kpcs per month
Detail Information
Input: AC220-240V Substrate: Sapphire
Input Voltage: AC230V Chip: Sanan
Length: 118*φ13.3 Material: Glass
Glass Type: Transparent Socket Type: R7S
High Light:

118MM linear r7s led

,

7W linear r7s led

,

135lm/W r7s base led


Product Description

Garden Lighting 118MM 7W 135lm/W 2700K Linear R7s Led



Voltage 240
Wattage 7
Conventional Wattage Equivalent 60W
Base R7s
Life (Hours) 15000
Lumens 806
Finish Clear
Diameter 29mm
Length 78mm
Colour Rendering Index Ra 80
Colour Temperature 2700
EEL A++





R7S 7W LED BULB​ Quick Detail:

  • FULL GLASS
  • AC220-240V input options
  • Transparent
  • Sapphire Substrate
  • Sanan chip
  • Mix gas coolingt
  • 320º beam
  • Up to 70% energy savings
  • 20w power consumption
  • IP44 Ingress protection
  • CE, RoHS, TUV, UL compliant
  • 2 Year Warranty



R7S 7W LED BULB​ Description:

  • Full glass appearance which is same like halogen bulb
  • COB technology and get luminous flux up to 130lm/w+
  • Mix with Semiconductor technology and LED technology and improve production efficiency.
  • By using halogen sealing technology can be achieve huge capability easily
  • Best retrofit choice for halogen bulb R7S



R7S 7W LED BULB​  Technical parameter:

R7S 7W LED BULB​  Basic information

P/N

Length

Material

Glass Type

Socket Type

FML-R7S-003-2700K 118*φ13.3 Glass transparent R7S



R7S 7W LED BULB​ Electrical parameter (Temperature=25℃)

Voltage(VAC)

Input current(A)

Rated Power(W)

AC230V Typ:0.04 7W±10%



R7S 7W LED BULB​ Optical parameter (Temperature=25℃)

Item parameter Unit
Input Voltage AC230V V
power factor PF≥0.75 -
LED Type Molding -
Luminous Flux Min: 720 Typ: 806 Max: 880 lm
Efficiency Typ: 120 Lm/w
Color Temperature 2650-2850K K
RA RA≥80 -
Light Angle 320 -
IPX IP44 -





Cautions

1. In order to ensure the product work properly, please use the power supply within indicating voltage range.

2. This product does not support dimming

3. Please follow the correct installation steps to install the product.

4. In order to ensure the effectiveness and safety, please do not in the high humidity or dust environment and bathroom, sauna room, this product use outdoor rain place





Competitive Advantage:

  • Outstanding appearance compare with other type of G9, such as silicon,plastic, ceramic and so on
  • Less labor cost than conventional G9
  • Higher lumen output and most reasonable retrofit for halogen bulb
