Wall Sconces Shatter Resistant Linear 4000k T3 78mm Led Bulb

Basic Information
Place of Origin: FML-001
Brand Name: China
Certification: CE,ROHS,
Model Number: filamentlux
Minimum Order Quantity: 3000PCS
Price: USD1.2-USD1.7
Packaging Details: Color box or Blister
Delivery Time: 20-25days
Payment Terms: T/T or L/C
Supply Ability: 200kpcs per month
Detail Information
Input: AC220-240V Substrate: Sapphire
Input Voltage: AC230V Chip: Sanan
Length: 78*φ13.3 Material: Glass
Glass Type: Transparent Socket Type: R7S
High Light:

Linear t3 78mm led bulb

,

4000k t3 78mm led bulb

,

Linear r7s led 78mm 4000k


Product Description

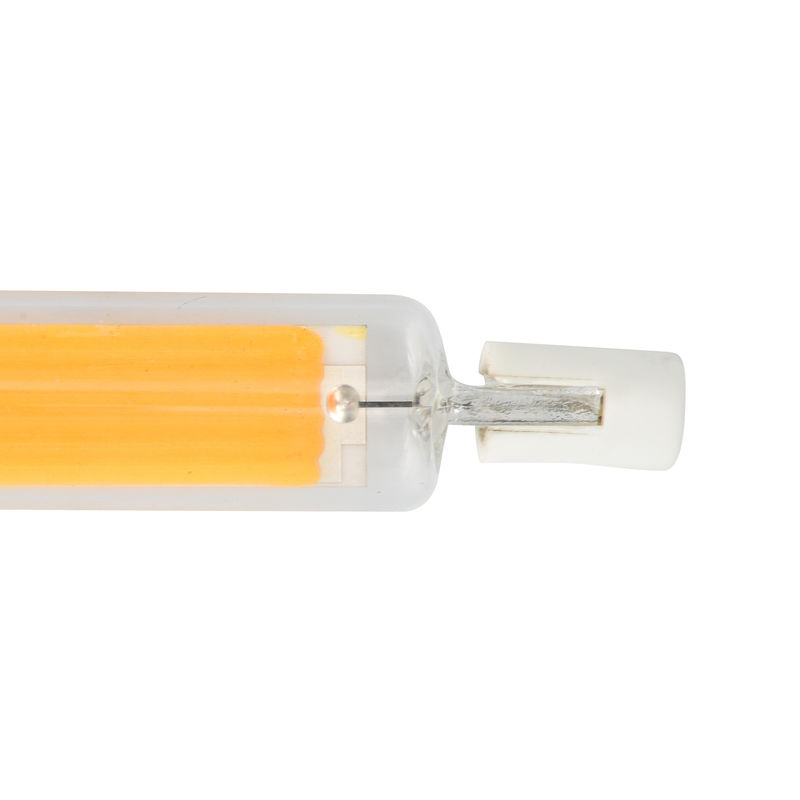

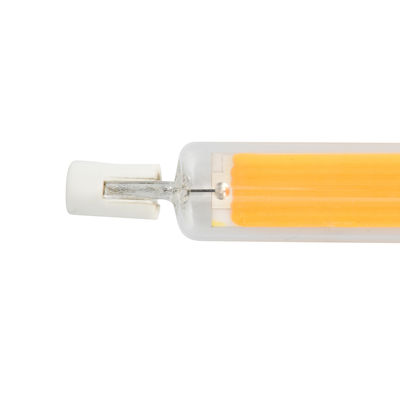

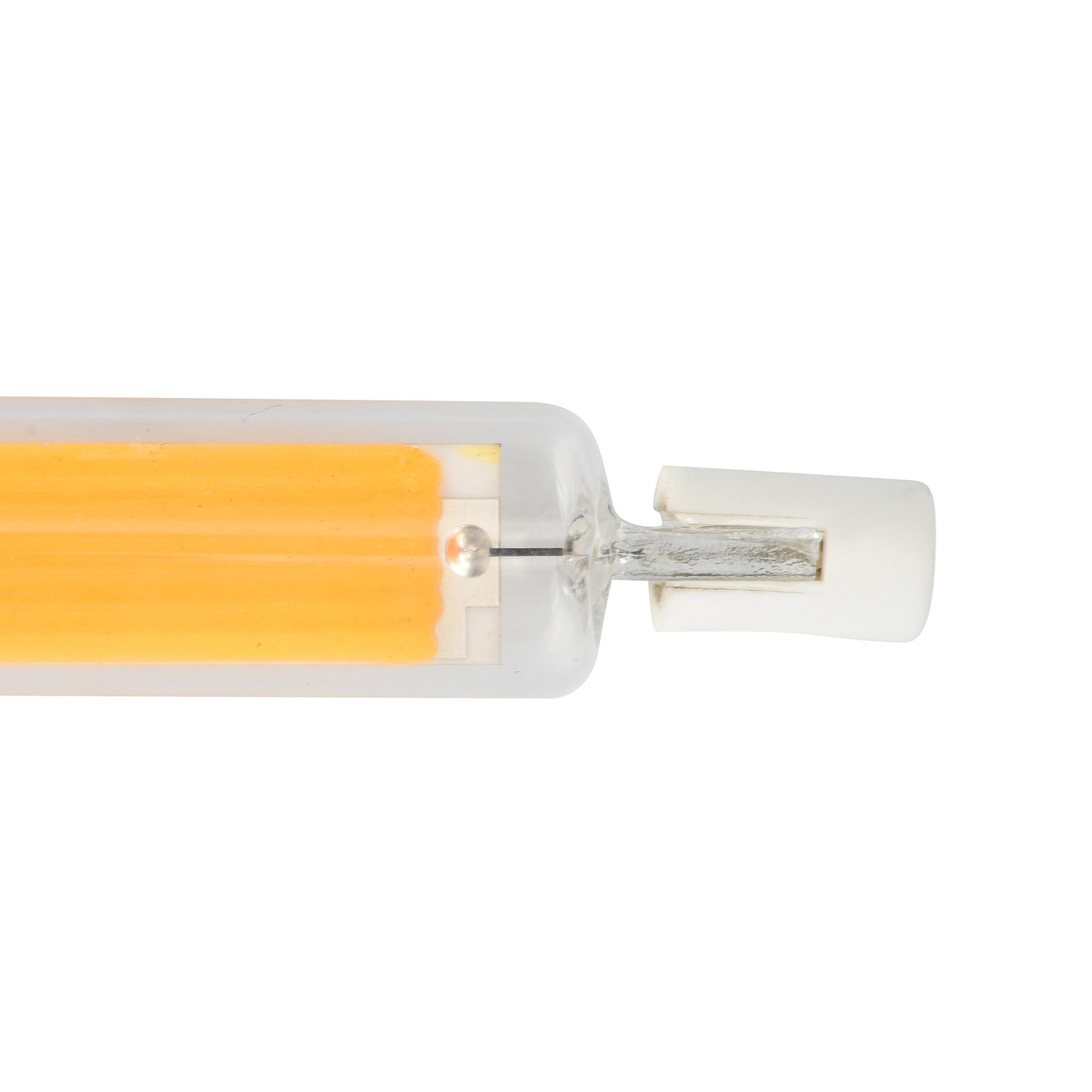

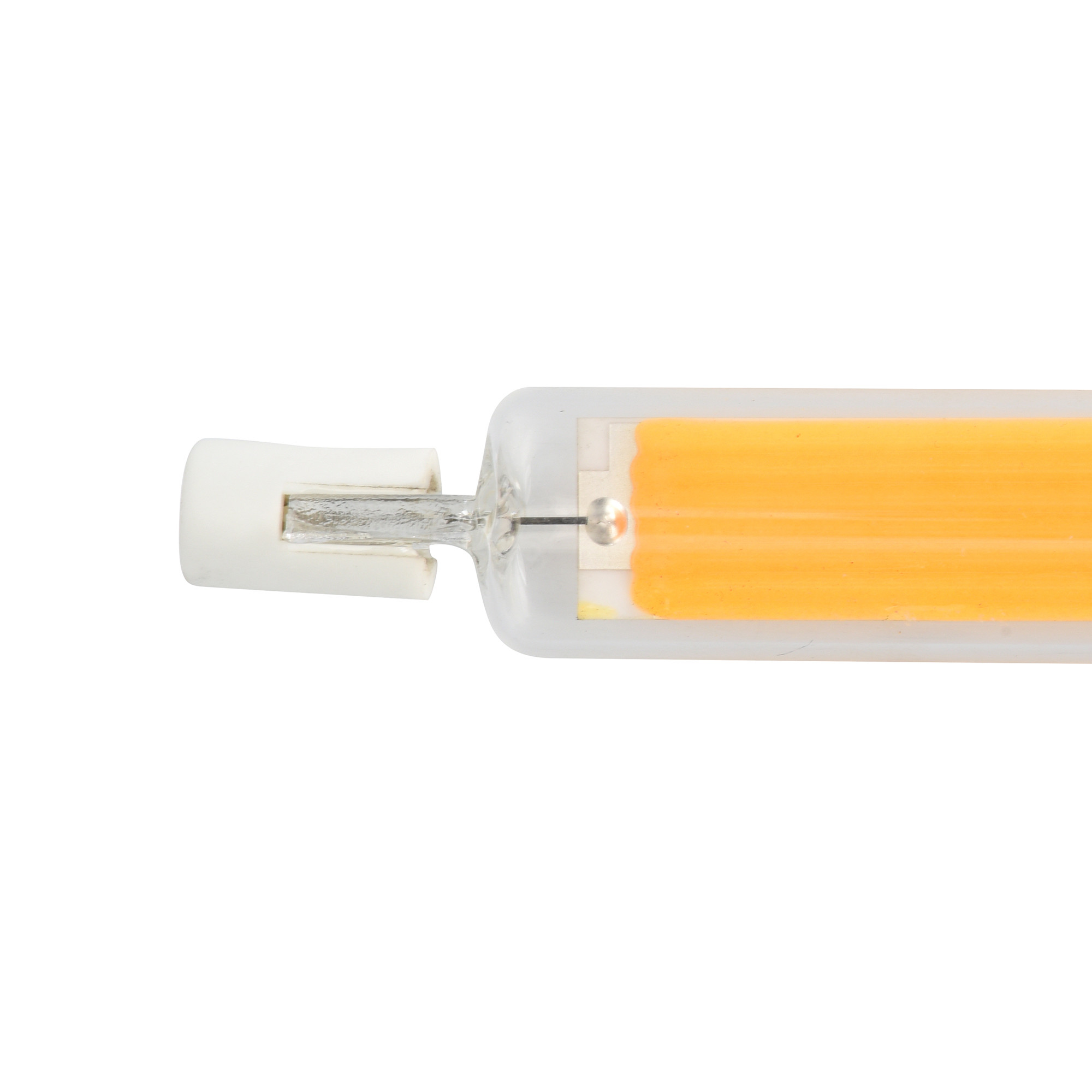

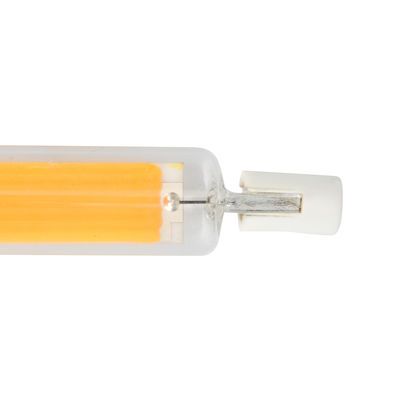

Wall Sconces Shatter Resistant Linear 4000k T3 78mm Led Bulb

  • Bulb type: Dimmable R7S LED Bulb 78mm
  • Base type: R7S(Double Ended)
  • Wattage: 10W
  • Bulb Features: Dimmable
  • Incandescent equivalent: 100W R7S Halogen
  • Voltage: 110v
  • Luminous Flux: 1000 Lumen
  • Color Temperature: 6000k Daylight
  • Color Rendering Index (CRI): 85
  • Mercury-free, No UV, No Hum, No Flicker



R7S 4W LED BULB​ Quick Detail:

  • FULL GLASS
  • AC220-240V input options
  • Transparent
  • Sapphire Substrate
  • Sanan chip
  • Mix gas coolingt
  • 320º beam
  • Up to 70% energy savings
  • 20w power consumption
  • IP44 Ingress protection
  • CE, RoHS, TUV, UL compliant
  • 2 Year Warranty

R7S 4W LED BULB Description:

  • Full glass appearance which is same like halogen bulb
  • COB technology and get luminous flux up to 130lm/w+
  • Mix with Semiconductor technology and LED technology and improve production efficiency.
  • By using halogen sealing technology can be achieve huge capability easily
  • Best retrofit choice for halogen bulb R7S

R7S 4W LED BULB Technical parameter:

R7S 4W LED BULB Basic information:

P/N

Length

Material

Glass Type

Socket Type

FML-R7S-001-2700K 78*φ13.3 Glass transparent R7S



Electrical parameter (Temperature=25℃)

Voltage(VAC)

Input current(A)

Rated Power(W)

AC230V Typ:0.02 4W±10%



R7S 4W LED BULB Optical parameter (Temperature=25℃)

Item parameter Unit
Input Voltage AC230V V
power factor PF≥0.75 -
LED Type Molding -
Luminous Flux Min: 405 Typ: 450 Max: 495 lm
Efficiency Typ: 120 Lm/w
Color Temperature 2650-2850K K
RA RA≥80 -
Light Angle 320 -
IPX IP44 -







Cautions

1. In order to ensure the product work properly, please use the power supply within indicating voltage range.

2. This product does not support dimming

3. Please follow the correct installation steps to install the product.

4. In order to ensure the effectiveness and safety, please do not in the high humidity or dust environment and bathroom, sauna room, this product use outdoor rain place





Competitive Advantage:

Outstanding appearance compare with other type of G9, such as silicon,plastic, ceramic and so on

Less labor cost than conventional G9

Higher lumen output and most reasonable retrofit for halogen bulb
