Solid Color 108pcs SMD2835 10w/m Silicone Neon LED Strip Lights

Basic Information
Place of Origin: China
Brand Name: filamentlux
Certification: CE,ROHS,
Model Number: FML-001
Minimum Order Quantity: 3000PCS
Price: USD0.32-USD0.52
Packaging Details: Color box or Blister
Delivery Time: 20-25days
Payment Terms: T/T or L/C
Supply Ability: 500kpcs per month
Detail Information
Lamp Power: 8W LED Quantity: 60leds/m
Lamp Luminous Flux(lm): 500LM/M LED Light Source: SMD2835 LED Chip
CRI: ≥80,90 Input Voltage(V): 24VDC
PCB Width: 12mm Working Lifetime(Hour): 30000
Lamp Body Material: PVC,PCB,Copper Wire Emitting Color: Warm Light /White Light/Blue/Red/Yellow/RGB/Changeable/Green/Others
IP Rating: IP20/IP66/IP67
High Light:

10w/m Neon LED Strip Lights

,

108pcs neon rgb led strip

,

10w/m silicone neon led strip


Product Description

Solid Color 108pcs SMD2835 10w/m Silicone Neon LED Strip Lights



  1. 12V low voltage silicone LED strip lights rope, flexible lamp belt features heat-resistant, waterproof, corrosion, weather resistant and has prominent anti-UV ability, ensures your security also make this led light strip works longer.
  2. Upgraded LEDs and side-brightness design make waterproof neon light strip shine brighter than others, 120 degrees projection range offer large illumination coverage.
  3. Cuttable neon rope lights-- 2.5cm(0.98in)per cut, please buy extra silicone glue to stick our lights on anywhere you like, 360 degree bendable, you could cut to DIY special residential decoration/design unique commercial sign.
  4. 2835 chips, 120LEDs/M, brighter and more efficient. Our dot-free LED neon light fixture, evenly luminous
  5. Great for advertising signs, letter sign, display signage, outlines, table/desk/bed/car/wall decoration and more, fit for indoor/outdoor/all year round.



24VDC LED NEON LIGHT Quick Details:

  • Lamp Power: 8W
  • Lamp Luminous Flux(lm): 500LM/M
  • Working Lifetime(Hour): 30000
  • Lamp Body Material: PVC, PCB, Copper Wire
  • Certification: CCC, ce, CQC, EMC, ETL, LVD, PSE, RoHS, SASO, VDE
  • Model Number: FML-LV-24V-2835-60F
  • Warranty(Year): 1/2 years
  • Emitting Color: Warm Light /White Light/Blue/Red/Yellow/RGB/Changeable/Green/Others
  • LED Light Source: SMD2835 LED Chip
  • Product Name: Led Light Strips
  • LED Quantity: 60leds/m
  • IP Rating: IP65
  • CRI: ≥80,90
  • PCB Width: 12mm
  • Input Voltage(V): 12VDC

Using super bright SMD LED as light source, High brightness, low decay. Low voltage, safety, stability. ECO-friendly, NO mercury, no UR and IR Easy installation using the plastic clip to fix it. Can be bent, can be cuttable, can be arbitrarily fixed in the concave surface. Long life, light source can last more than 50.000 hours



24VDC LED NEON Parameters:

ITEM NO. FML-LV-24V-2835-60n
INPUT VOLTAGE 24V
FREQUENCY 50Hz
INPUT CURRENT /
RATED POWER 7.5W±10%/m
PF >0.9
Luminous Flux ≥500LM
LPW ≥70lm/W
CCT 2800-3200k,4000-4500K,6000-6500K
Ra ≥70
SDCM <6 SDCM
Working condition -10℃~40℃;10%~90%
Insulate class II
Install method Clip
Driver connection Plug in-off
NET weight(100m) 11kg
Product size L50000mm×W16.5mm×H8mm
Master carton 460mm × 260mm ×270mm
Packing 400m/CTN
Lifetime 25000h
Warranty 1 YEAR

  • high brightness, good transmittance, uniform astigmatism surface 170 degrees, excellent color effect.
  • not easy atomization, low power consumption, pure color, no dark area.
  • using high-quality chips, the light source has high brightness, a large angle, good color consistency, and stable performance.
  • installation is fixed, convenient, flexible, and convenient.
  • energy saving, high brightness, low fever, low energy consumption, beauty, and so on.
  • use DC24V/DC12V power supply, use safer.
  • waterproof grade, integral extrusion molding (IP67).


1) Pay attention +/- when SMT

2) LED SMT need to be tidy and without weak soldering

3) Smooth soldering point and clean LED

4) No any scar in the PCB

5) Can not see any color and brightness difference when by the naked eye

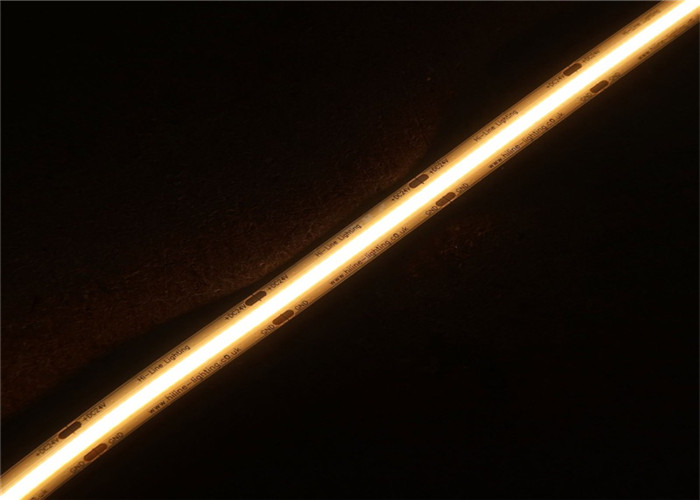

Solid Color 108pcs SMD2835 10w/m Silicone Neon LED Strip Lights 0

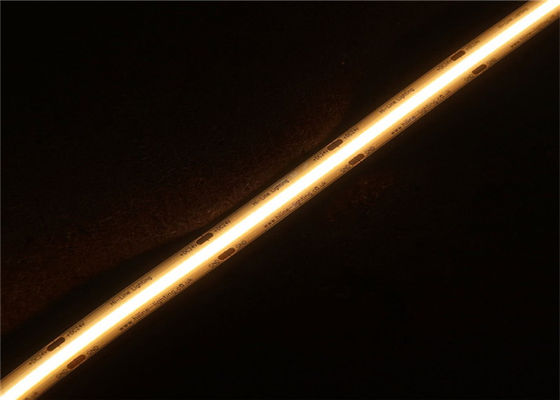

Solid Color 108pcs SMD2835 10w/m Silicone Neon LED Strip Lights 1
