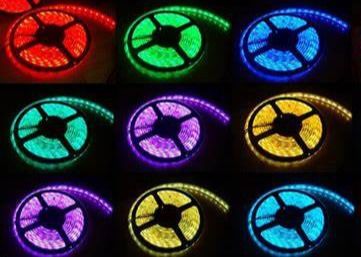

Cuttable 3000-3500K 0.8cm 60led/M SMD2835 Rgb Led Strip

Basic Information
Place of Origin: China
Brand Name: filamentlux
Certification: CE,ROHS,
Model Number: FML-001
Minimum Order Quantity: 3000PCS
Price: USD0.32-USD0.52
Packaging Details: Color box or Blister
Delivery Time: 20-25days
Payment Terms: T/T or L/C
Supply Ability: 500kpcs per month
Detail Information
Model Number: FML-LV-2835-60-N Lamp Power: 8W
Lamp Luminous Flux(lm): 500LM/M Working Lifetime(Hour): 30000
Lamp Body Material: PVC,PCB,Copper Wire Certification: CCC, Ce, CQC, EMC, ETL, LVD, PSE, RoHS, SASO, VDE
Warranty(Year): 1/2 Years Emitting Color: Warm Light /White Light/Blue/Red/Yellow/RGB/Changeable/Green/Others
LED Light Source: SMD2835 LED Chip Product Name:: Led Light Strips
LED Quantity: 60leds/m IP Rating: IP20/IP66/IP67
CRI: ≥80,90 PCB Width: 12mm
Input Voltage(V): 12VDC
High Light:

0.8cm 2835 rgb led strip

,

3500K 2835 rgb led strip

,

cuttable smd 2835 led strip light


Product Description

Cuttable 3000-3500K 0.8cm 60led/M SMD2835 Rgb Led Strip

  • Super bright 2835 5050 SMD top LED, high intensity and reliability.
  • Long life span 50,000+ hours
  • Flexible ribbon for curving around bends
  • Low power consumption
  • With sticker, Easy Mounting
  • Cuttable every 3 LEDs along the cutting marks, according to practical requirement.
  • Waterproof(IP44)

12VDC LED STRIP LIGHT Quick Details:

  • Lamp Power: 8W
  • Lamp Luminous Flux(lm): 500LM/M
  • Working Lifetime(Hour): 30000
  • Lamp Body Material: PVC, PCB, Copper Wire
  • Certification: CCC, ce, CQC, EMC, ETL, LVD, PSE, RoHS, SASO, VDE
  • Model Number: FML-LV-2835-60-N
  • Warranty(Year): 1/2 years
  • Emitting Color: Warm Light /White Light/Blue/Red/Yellow/RGB/Changeable/Green/Others
  • LED Light Source: SMD2835 LED Chip
  • Product Name: Led Light Strips
  • LED Quantity: 60leds/m
  • IP Rating: IP65
  • CRI: ≥80,90
  • PCB Width: 12mm
  • Input Voltage(V): 12VDC



12V AC LED STRIP LIGHT Parameters:

ITEM NO. FML-LV-2835-60-N
INPUT VOLTAGE 12/24V
FREQUENCY 50Hz
INPUT CURRENT /
RATED POWER 7.5W±10%/m
PF >0.9
Luminous Flux ≥500LM
LPW ≥70lm/W
CCT 2800-3200k,4000-4500K,6000-6500K
Ra ≥70
SDCM <6 SDCM
Working condition -10℃~40℃;10%~90%
Insulate class II
Install method Clip
Driver connection Plug in-off
NET weight(100m) 11kg
Product size L50000mm×W16.5mm×H8mm
Master carton 460mm × 260mm ×270mm
Packing 400m/CTN
Lifetime 25000h
Warranty 1 YEAR




1) Pay attention +/- when SMT

2) LED SMT need to be tidy and without weak soldering

3) Smooth soldering point and clean LED

4) No any scar in the PCB

5) Can not see any color and brightness difference when by naked eye
