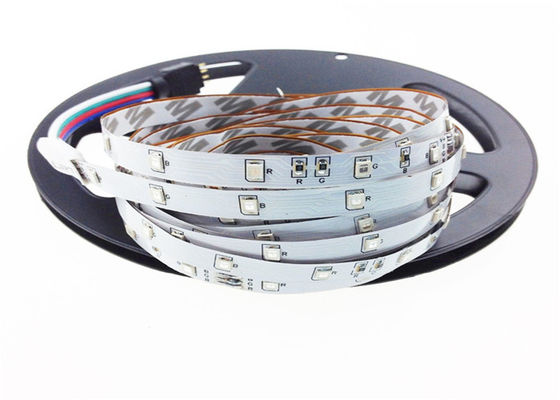

IP20 12V Addressable Led Strip

Basic Information
Place of Origin: China
Brand Name: filamentlux
Certification: CE,ROHS,
Model Number: FML-001
Minimum Order Quantity: 3000PCS
Price: USD0.32-USD0.52
Packaging Details: Color box or Blister
Delivery Time: 20-25days
Payment Terms: T/T or L/C
Supply Ability: 500kpcs per month
Detail Information
Lamp Power: 12W Lamp Luminous Flux(lm): 800LM/M
Working Lifetime(Hour): 30000 Lamp Body Material: PVC,PCB,Copper Wire
LED Light Source: SMD2835 LED Chip LED Quantity: 60leds/m
IP Rating: IP20/IP66/IP67 CRI: ≥80,90
PCB Width: 12mm Input Voltage(V): 12VDC
High Light:

IP20 12V Addressable Led Strip

,

12W 12V Addressable Led Strip

,

IP20 12v cob led strip


Product Description

12VDC LED STRIP LIGHT 12V SMD2835 120PCS/m IP20



Flexible ribbon for curving around bends. High quality with CE and RoHS certificates. High luminous flux output with super bright. Various colors and safe input voltage optional. Easy Installation with 3M adhesive back stickers.



12VDC LED STRIP LIGHT Quick Details:

  • Lamp Power: 12W
  • Lamp Luminous Flux(lm): 800LM/M
  • Working Lifetime(Hour): 30000
  • Lamp Body Material: PVC, PCB, Copper Wire
  • Certification: CCC, ce, CQC, EMC, ETL, LVD, PSE, RoHS, SASO, VDE
  • Model Number: FML-LV-2835-120-N
  • Warranty(Year): 1/2 years
  • Emitting Color: Warm Light /White Light/Blue/Red/Yellow/RGB/Changeable/Green/Others
  • LED Light Source: SMD2835 LED Chip
  • Product Name: Led Light Strips
  • LED Quantity: 60leds/m
  • IP Rating: IP65
  • CRI: ≥80,90
  • PCB Width: 12mm
  • Input Voltage(V): 12VDC



12V AC LED STRIP LIGHT Parameters:

ITEM NO. FML-LV-2835--N
INPUT VOLTAGE 12/24V
FREQUENCY 50Hz
INPUT CURRENT /
RATED POWER 11W±10%/m
PF >0.9
Luminous Flux ≥500LM
LPW ≥70lm/W
CCT 2800-3200k,4000-4500K,6000-6500K
Ra ≥80
SDCM <6 SDCM
Working condition -10℃~40℃;10%~90%
Insulate class II
Install method Clip
Driver connection Plug in-off
NET weight(100m) 11kg
Product size L50000mm×W16.5mm×H8mm
Master carton 460mm × 260mm ×270mm
Packing 400m/CTN
Lifetime 25000h
Warranty 1 YEAR

1. SMD3528 high powered LEDs delivering
2. Double-sided copperplate design, low voltage drop
3. High color consistency
3. DC12/24V
5. IP20/IP65/IP67/IP68
6. Warm white/White/Cool White/Red/Green/Blue/Yellow





Colorful and Widely Used:
This Color Changing Led strip lights High brightness SMD 5050 300 LEDs can change colors s applicable for living room, dining room, bedroom, upstairs, porches, and parties, wedding, Chrismas, Halloween and other festival holidays.


Control Method:
Elfeland Bluetooth RGB Strip Light designed a variety of control methods for you. Use simple and fun actions to turn lights on and off, make them brighter, make them pulse with music, and change them to your favorite color.



1) Pay attention +/- when SMT

2) LED SMT need to be tidy and without weak soldering

3) Smooth soldering point and clean LED

4) No any scar in the PCB

5) Can not see any color and brightness difference when by naked eye
